TSM08

TSM08

TSM0840 0850

長8.0，寬8.5，高4.0--5.0mm。

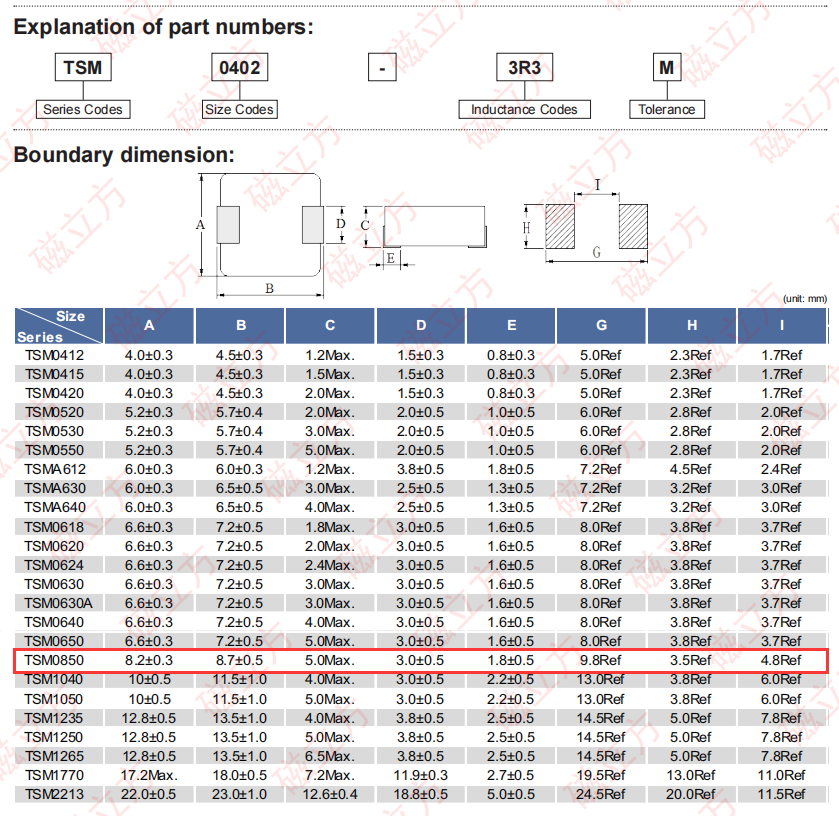

外觀尺寸Outline dimension

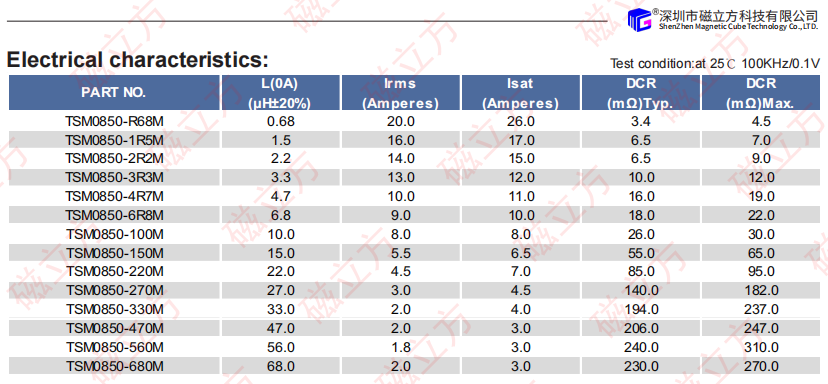

電氣特性參數 Electrical characteristics


說明

■  K表示電感值的公差為±10%，M表示電感值的公差為±20%。

■  K said inductance tolerance is ±10%, M said inductance tolerance is ± 20%.

■  所有數據基于環境溫度25℃條件下測試。

■  All data is based on testing at an ambient temperature of 25 ℃.

■  本頁面未能錄入全部或最新的數據，請您在訂購前向本公司咨詢精準參數及樣品。

■  We were unable to input all or the latest data on this page. Please consult our company for accurate parameters and samples before placing an order.

注意事項

■  保存條件：溫度 5～40°C，相對濕度小于等于 70%。

■  Storage conditions: Temperature between 5-40 ° C, relative humidity less than or equal to 70%.

■  產品儲存期不建議超過 12 個月。

■  The storage period of the product is not recommended to exceed 12 months.
